AUE / AUED

Standards-compliant design and reliable performance at critical moments.
  • Fully compliant with EN 12845
  • Electric + Electric + Jockey pump configurations
  • Electric + Diesel + Jockey pump configurations
  • Flow capacity up to 1,150 m³/h
  • Head up to 185 mWC
  • Operating pressure of 25 bar
  • Automatic fire-water pressurisation system
  • Weekly automatic test system
  • Independent control panel for each pump
  • Jockey pump system that maintains system pressure without operating the main pump
  • CE-approved and EN 12845-compliant equipment

  • Flow Rate (Q): 6–1,150 m³/h
  • Head (H): Up to 185 mWC
  • Operating Pressure: 25 bar
  • Configurations:
    • Electric + Electric + Jockey
    • Electric + Diesel + Jockey
  • Protection Class: IP55
  • Compliant with EN 12845
  • Compliant with IEC Standards
  • CE-Certified Systems
  • Water-Cooled Diesel Engine Options
  • End-suction single-stage centrifugal pumps
  • End-suction multistage centrifugal pumps
  • Horizontal-shaft main pumps
  • Stainless-steel multistage jockey pumps
  • Common base frame system
  • Suction and discharge manifolds
  • Separate valve and check-valve assembly for each pump
  • Flexible or spacer-type couplings
  • Cardan shaft connection for diesel-driven systems
  • 24-litre membrane expansion tank
  • Pump design with mechanical seal
  • Optional bronze components and custom material options
  • Fire hose cabinet systems
  • Fire hydrant systems

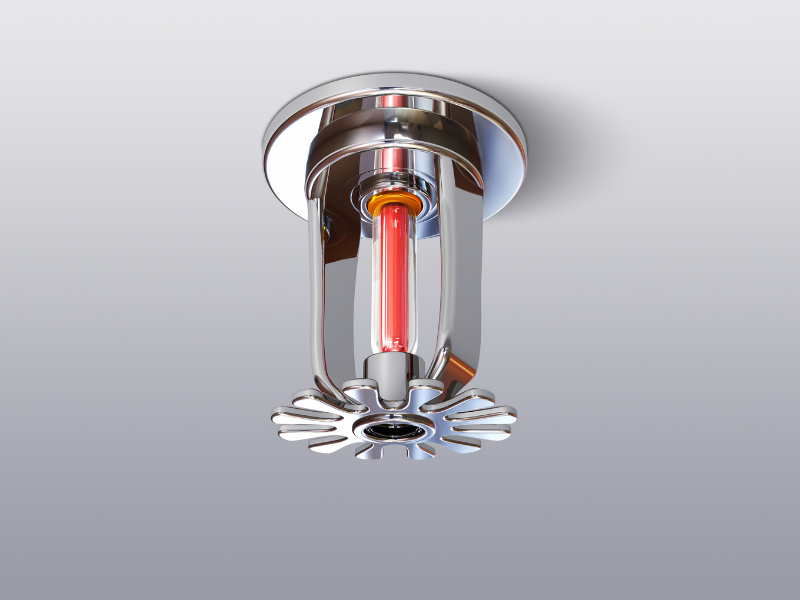

  • Sprinkler systems
  • Industrial facilities
  • Airports
  • Data centres
  • Logistics centres
  • Shopping centres
  • Hotels
  • Hospitals
  • High-rise buildings
  • Critical infrastructure projects
